SolidCitric

Smart Subsea Cleaning

Jupa is a solution provider to the international oil & gas industry. Our innovative way of acid cleaning subsea assets is used on nearly a daily basis in the North Sea. Explore the SolidCitric concept and product range below!


What is SolidCitric?

The patented SolidCitric concept from Jupa has changed how to deal with the subsea acid cleaning task.
Gone and forgotten are hoses from deck and compensators on the ROVs. The ROV installs an adapter on the subsea interface and then fits the SolidCitric cartridge to the adapter. When the acid dissolves, it flows downwards and displaces / saturates the raw seawater entrapped within the adapter. When the cleaning is finished and the adapter removed, it is sufficient to merely water jet the subsea interface in order to get rid of loosened limescale and rust.

Note that our SolidCitric product is 100% environmentally friendly and is classed as PLONOR.
Both MSDS, HOCNF and CEFAS documentation is readily available upon request.

Please also read our FAQ sheet or look at our animation below.

before cleaning

Install

Install adapter and SolidCitric cartridge on interface.

during cleaning

Leave

This is where the money is saved!
Let the acid work on its own while you do other useful things with your vessel/rig/ROV elsewehere.

after cleaning

Return

Remove adapter from interface. Blow away loose debris with ROV waterjet. Finished!

Our Product Range

We have a wide range of interface adapters and cartridges ready for dealing with your subsea acid cleaning task. Use the navigation buttons and click on the different products for more info. If you don’t find what you are looking for then please contact us and we will assist you with a free quote for a tailor-made solution!

We also design and deliver products that are not necessarily related to acid cleaning. They are most easily found by looking in the "other unrelated products" section below.

TechnipFMC KC4.2-12

TechnipFMC - KC4.2-12 adapter

P/NP064
Weight,dry17 kg
Weight,wet-0.5 kg (buoyant)

This adapter is designed for acid treating the TechnipFMC KC4.2-12 in a Xmas tree by installation from below. Because the tool is buoyant it will remain in place, however it is designed to allow for closing the KC connector after installation. It uses the 1,3kg SolidCitric cartridge (P/N 100000180).

TechnipFMC KC4.2-12

TechnipFMC - KC4.2-12 (w/guidepins) preservation cap

P/NP226
Weight,dry21 kg
Weight,wet2 kg

This preservation cap is identical to P086, but it in addition also has machined pockets that allow for guide pins which protrude from the KC hub.

Guidepost receptacle adapter

Generic - Guide post receptacle adapter

P/NP221
Weight,dry24 kg
Weight,wet9 kg

This adapter was designed to clean a guide post receptacle with an ID of 222 and an OD of 273, but the design will fit most guide posts with minor modifications, if any. It is used in conjuction with our standard 6 kg SolidCitric cartridge.

TechnipFMC MQC scrubber

TechnipFMC - MQC coupler scrubber

P/NP171
Weight,dry1 kg
Weight,wet0.9 kg
AvailabilityPurchase or rental

This little brushing tool is handy for giving the individual MQC couplers a good scrub in case there still are some remnants of limescale after acid cleaning. It is designed to be so flexible that it is safe to use even if the ROV manip makes some unexpected "moves" during use.

TechnipFMC SCMMB adapter

TechnipFMC - SCMMB adapter

P/NP208
Weight,dry151 kg
Weight,wet35 kg
AvailabilityPurchase

This adapter was designed to effectively acid clean a SCM mounting base (SCMMB).

Optime 4'' female hub adapter

Optime - 4'' female hub adapter

P/NP205
Weight,dry12 kg
Weight,wet6 kg
AvailabilityPurchase

This adapter was designed to effectively acid clean an Optime 4'' female hub. It is used in conjuction with our standard 6 kg SolidCitric cartridge.

6'' Taper-Lok flange adapter

6'' Taper-Lok flange adapter

P/NP225
Weight,dry16 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This adapter was designed to effectively acid clean a 6" Taper-Lok flange, both male and female. It is used in conjuction with our standard 6 kg SolidCitric cartridge.

14'' and 20'' Bellmouth and J-tube adapter

Generic - Bellmouth and J-tube adapter

P/NP216 / P217
Weight,dry65/110 kg
Weight,wet24/35 kg
AvailabilityPurchase

These Bellmouth and J-tube adapters (for 14" and 20") were designed to be installed by divers.

TechnipFMC 4'' x 2'' GLL XT adapter

TechnipFMC - 4'' x 2'' GLL XT adapter

P/NP214
Weight,dry312 kg
Weight,wet103 kg
AvailabilityPurchase

This adapter was designed to effectively acid clean the hydraulic couplers encircling the base of mandrel for a 4'' x 2'' GLL Production XMAS tree.

Destec 10-inch seal ring recovery and installation tool

Destec - 10'' seal ring tool

P/NP207
Weight,dry34 kg
Weight,wet27 kg
AvailabilityPurchase

This compact tool was designed to efficiently recover a 10'' Destec seal ring from an inboard hub and replace it with a new one. It was designed to be used by one ROV with limited visibility whilst ensuring no risk of accidentally damaging seal surfaces.

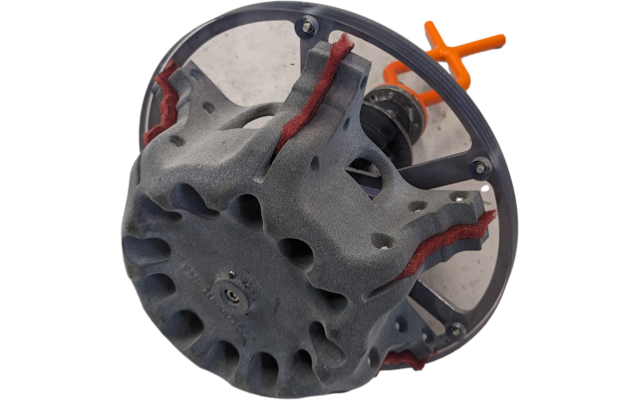

Destec 10-inch inboard hub brushing tool

Destec - 10'' inboard hub brushing tool

P/NP209
Weight,dry10 kg
Weight,wet4 kg
AvailabilityPurchase

This hydraulic brushing tool was designed to brush a 10-inch inboard hub after removing used seal ring and before installing new seal ring. It features a flexible 3D printed rubber brush head with Scotchbrite pads; in effect ensuring no risk of accidentally damaging seal surfaces.

Unitech UH-550 Brushing tool

Unitech - UH-550 receptacle brushing tool

P/NP180
Weight,dry30 kg
Weight,wet15 kg
AvailabilityPurchase or rental

This hydraulic tool is designed to thoroughly brush the Unitech UH-550 receptacle. The brush head can easily be replaced on deck if required.

Aker Solutions ITC Brushing tool

Aker Solutions - ITC brushing tool

P/NP229
Weight,dry31 kg
Weight,wet18 kg
AvailabilityPurchase

This hydraulic tool is designed to thoroughly brush the interior and exterior upper section of an Aker Solutions Internal Tree Cap (ITC).It is fitted with a 2L Blue Logic hotstab receptacle.

Walther manip adapter

Walther - Manip adapter

P/NP176
Weight,dry4 kg
Weight,wet4 kg
AvailabilityPurchase or rental

This tool is useful as an alternative to our torque tool (P150) for locking/unlocking the Walther connectors. Prior to use ensure that manip wrist torque will not exceed manufacturers stated allowed torque.

Walther flying lead handling tool

Walther - Flying lead handling tool

P/NP192
Weight,dry10 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This tool snap locks onto the Walther connector so that it may be handled/moved by the ROV. It also has a square end effector like our P176 tool. Prior to use ensure that manip wrist torque will not exceed manufacturers stated allowed torque.

2-inch Norvalve Pressure cap jack

2'' Pressure cap jack

P/NP204
Weight,dry10 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This hydraulic jack was made for disconnecting a stuck 2-inch pressure cap. It has a Byberg 1-ton cylinder with JIC-4 fittings in ROV hose end.

Walther connector ROV parking stand

Walther - ROV connector parking stand

P/NP177
Weight,dry6 kg
Weight,wet2 kg
AvailabilityPurchase or rental

This parking stand for the Walther connector is intended to be mounted on the corner of ROV bellybasket.

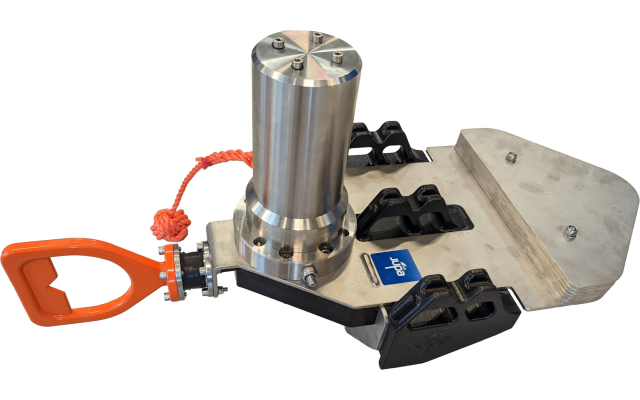

MWA clamp acid cleaning wedge adapter

Rubber wedge acid cleaning adapter

P/NP183
Weight,dry34 kg
Weight,wet24 kg
AvailabilityPurchase

This tool functions as a flexible rubber wedge that enables a snug fit around a clamp in order to give a very localized acid treatment. The design is somewhat generic and could be modified for your specific needs. It is used in conjuction with our standard 1,3kg SolidCitric cartridge (P/N 100000180) which is activated by pulling a monkeyfist.

10'' Destec clamp acid cleaning wedge adapter

10'' clamp adapter

P/NP224
Weight,dry10 kg
Weight,wet6 kg
AvailabilityPurchase

This tool functions as a flexible rubber wedge that enables a snug fit around a clamp in order to give a very localized acid treatment on the upper area of the trapezoidal threads of a 10'' Destec clamp. It is used in conjuction with our standard 6 kg SolidCitric cartridge. This adapter was delivered with two wedges to enable snug fit for both a clamp with R114 and R98 [mm]. The design is somewhat generic and could be modified for your specific needs.

Baker Hughes 14W Snøhvit MQC adapter

Baker Hughes - "Snøhvit" 14W MQC adapter

P/NP174
Weight,dry17 kg
Weight,wet5 kg
AvailabilityPurchase

This 14-way MQC adapter was designed for the Snøhvit field and has an offset receptacle to avoid collision with vertical features above MQC receptacle. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Baker Hughes Protection cap

Baker Hughes - 5'' protection & inhibition cap

P/NP213
Weight,dry17 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This protection cap is used for the 5'' mandrel which also our P191 adapter is designed for. It has a compartment where Roemex RX-5207 (100gr) inhibition sticks are to be placed.

Destec 10-inch inboard hub adapter

Destec - 10'' Inboard hub adapter

P/NP210
Weight,dry20 kg
Weight,wet5 kg
AvailabilityPurchase or rental

This adapter was designed to acid clean the seal area of a 10-inch inboard Destec hub. Note that it can also be used if the seal ring has not been removed. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Dril-Quip D6 adapter

DrillQuip - D6 profile adapter

P/NP197
Weight,dry15 kg
Weight,wet8 kg
AvailabilityPurchase

This adapter was designed for acid cleaning a Dril-Quip D6 profile XT mandrel. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Baker Hughes 4W Snøhvit MQC adapter

Baker Hughes - "Snøhvit" 4W MQC adapter

P/NP195
Weight,dry25 kg
Weight,wet5 kg
AvailabilityPurchase or rental

This 4-way MQC adapter was designed for the Snøhvit field and has an offset receptacle to avoid collision with vertical features above MQC receptacle. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

OneSubsea CC40 XMT choke adapter

OnseSubsea - CC40 XMT choke adapter

P/NP194
Weight,dry34 kg
Weight,wet18 kg
AvailabilityPurchase or rental

This adapter was designed for a OneSubsea (Ex. Cameron) CC40 XMT choke. It also comes with a separate installation guide aid to help assist with entering into the choke if deemed required. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Onesubsea 28W MQC adapter

OneSubsea - RIMS 28W adapter

P/NP179
Weight,dry31 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This adapter acid cleans the OneSubsea 28-way RIMS. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Tie-in receptacle adapter

Generic - Tie-in receptacle adapter

P/NP193
Weight,dry23 kg
Weight,wet6 kg
AvailabilityPurchase

This adapter acid is designed to acid clean a horizontal tie-in receptacle. It is used in conjunction with our standard 6 or 12 kg SolidCitric cartridge.

Onesubsea RIMS 14W MQC adapter

OneSubsea - RIMS 14W adapter

P/NP190
Weight,dry22 kg
Weight,wet4 kg
AvailabilityPurchase or rental

This adapter acid cleans the OneSubsea 14-way RIMS. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

18 3-4 wellhead inclinometer

18 3/4'' Inclinometer

P/NP173
Weight,dry27 kg
Weight,wet15 kg
AvailabilityPurchase or rental

This inclinometer is designed to be very stiff and durable. All metal parts are covered by plastic to avoid accidental damage to hub seal areas during installation/recovery. The range is +/- 3deg by default, but other options are available pending request.

FMC MQC Mk1

TechnipFMC - MQC13 Mk1 adapter

P/NP008
Weight,dry28 kg
Weight,wet23 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating TechnipFMC MQC13 Mk1 receptacles. Soft rubber caps seal around the hydraulic connectors and enables a very efficient acid treatment. The adapter has a snap lock function with the fingers in centre of the adapter made from the engineering polymer PEEK.

Hydraulic fitting rotational restraint clamp

Hydraulic fitting rotational restraint clamp

P/NP164
Weight,dry1 kg
Weight,wet1 kg
AvailabilityPurchase

This clamp is designed to be installed across two fittings and ensure that these are rotationally restrained once installed. A removable installation tool incorporates a torque limitation to ensure that overtorqueing does not occur. The design is generic and can be adapted for all variations of fittings. Note that the clamp is designed to merely geometrically "lock" the hex flats and not apply a noteworthy clamping force which could potentially introduce a bending moment across the fittings if allowed to occur. The clamps are 3D printed in metal - the one shown is Inconel 718, other viable alternatives are 316L or Titanium Gr.5.

BH SCMMB adapter

Baker Hughes - adapter for SCM Mounting Base

P/NP163
Weight,dry74 kg
Weight,wet16 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating a Baker Hughes (Vetco) SCM Mounting Base. It incorporates an acid distribution manifold which enables a highly effective cleaning. It is used in conjunction with our 6 or 12 kg SolidCitric cartridges.

Stuck ODI connector

Teledyne ODI - adapter for stuck connector

P/NP162
Weight,dry10 kg
Weight,wet6 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating stuck Teledyne ODI connectors. It incorporates a layered flexible sleeve that seals around the jumper cable. It is used in conjunction with our 6 or 12 kg SolidCitric cartridges.

Baker Hughes 14-way MQC

Baker Hughes(Vetco)-MQC 14-way adapter

P/NP135
Weight,dry22,1 kg
Weight,wet7,3 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating Baker Hughes (Vetco) MQC 14-way receptacles. A soft rubber sealing sheet seals around the hydraulic connectors and other protruding feature; in effect enabling a very efficient acid treatment. The adapter uses our standard 6kg or 12kg SolidCitric acid cartridges.

Aker Solutions SCM mounting base

Aker Solutions - SCM MB GP adapter

P/NP027
Weight,dry14 kg
Weight,wet12 kg
AvailabilityPurchase

This adapter is designed for acid treating the guide posts on an Aker Solutions SCM Mounting Base where the SCM "guide funnels" are calcified stuck to the guide posts.
This adapter uses our Ø90 - L 250 mm SolidCitric cartridge (PN 100000230).

8-inch Sealign flange adapter

Subseadesign Sealign 8'' flange adapter

P/NP157
Weight,dry14 kg
Weight,wet6 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating 8-inch SubseaDesign Sealign flanges. A soft rubber sealing sheet seals around the circumference of the flange and a center stab seals in the flowline/spool bore; in effect enabling a very efficient acid treatment. The adapter uses our standard 6kg or 12kg SolidCitric acid cartridges. Can be installed by both WROV and diver.

12-inch Sealign flange adapter

Subseadesign Sealign 12'' flange adapter

P/NP158
Weight,dry24 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating 12-inch SubseaDesign Sealign flanges. A soft rubber sealing sheet seals around the circumference of the flange and a center stab seals in the flowline/spool bore; in effect enabling a very efficient acid treatment. The adapter uses our standard 6kg or 12kg SolidCitric acid cartridges. Can be installed by both WROV and diver.

Baker Hughes Paddle valve

Baker Hughes - Paddle valve adapter

P/NP070
Weight,dry7 kg
Weight,wet5 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating Baker Hughes (Vetco) paddle valve receptacles. It is swiveled in order to avoid accidental operation of paddle during installation/recovery.
It is compatible with our standard 6 kg SolidCitric cartridge.

Generix VX seal area scrubber

Generic - 18 3/4'' VX seal area scrubber

P/NP133
Weight,dry19 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This tool is designed for manually scrubbing the VX seal area of an 18 3/4'' mandrel using manip. The tool comprises pre-assembled cassettes which have Scotch-Brite (very fine) pads in them. These cassettes are easily replaced on deck if required. Note: Ask us if you want the hydrojet powered version!

Flat area cleaning

Generic - Flat area cleaning

P/NP119
Weight,dry16,7 kg
Weight,wet7,1 kg
AvailabilityPurchase

This adapter is designed for acid treating flat (horizontal) areas.

The tool is kept in place by use of magnets and can therefore be used upside down as well.

The design is generic and can easily be modified for your needs. It is compatible with our 6 or 12 kg SolidCitric cartridges.

Cl. 5 adapter

Cl.5 adapter

P/NP082
Weight,dry16 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating API Class 5 valve receptacles. It is bolted onto the OD of our P057 adapter which is a class 1-4 valve adapter.

stuck SCM couplers

Stuck SCM coupler cleaning tool

P/NP121
Weight,dry17 kg
Weight,wet11 kg
AvailabilityPurchase or rental

We made these tools for acid cleaning presumed stuck electrical connectors on a SCM. They were used successfully. Note that we will easily deliver tools that are bespoke for your particular subsea situation.

stuck NLI Asker 2-inch stab

NLI Asker 2'' stab adapter

P/NP140
Weight,dry23 kg
Weight,wet21 kg
AvailabilityPurchase

We made these tools for acid cleaning stuck 2-inch "scale squeeze" NLI Asker stabs. The tool is lowered from above onto the stab and makes a seal towards underlying receptacle. The tool uses our standard 6kg or 12kg SolidCitric cartridge.

Aker Solutions HCM IB 12''-5''

Aker Solutions - HCM IB 12"-5"+2x2" adapter

P/NP073
Weight,dry57 kg
Weight,wet29 kg
AvailabilityPurchase

This horseshoe adapter is designed for acid treating Aker Solutions HCM IB 12"-5" + 2x 2". The handle is lowered downwards after landing on the hub; in effect sealing the 5" bore with a stab while a compression plate squeezes front seal towards the hub face.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Note: The linkage design is quite clever - have a look here!

Destec 10'' outboard hub debris cap

Destec - 10'' OB hub Debris Cap

P/NP211
Weight,dry15 kg
Weight,wet9 kg
AvailabilityPurchase

This debris cap is incredibly simple to install and remove. Lower it onto hub and it will automatically lock onto the hub. Pull the monkey fist upwards and it will disengage and come off hub. It will not accidentally fall off hub during handling. Furthermore it is designed to vent out pressure fluctuations in pipeline.

Note: The design is quite clever - have a look here!

Aker Solutions HCM IB 12''-5''

Aker Solutions - HCM IB 12"-5"+2x2" adapter

P/NP184
Weight,dry19 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating Aker Solutions HCM IB 12"-5" + 2x 2" hubs for jobs where there is good access for the ROV. Utilizes our standard 6 or 12 kg SolidCitric cartridges.

Aker Solutions RTS 12'' clamp

Aker Solutions - RTS 12" clamp

P/NP186
Weight,dry7 kg
Weight,wet2 kg
AvailabilityPurchase

This adapter is designed for acid treating Aker Solution RTS 12" clamp trapezoidal upper thread section. It comprises two halfshells that are installed sideways onto the treaded rod. It is used in conjunction with our standard 6 or 12 kg SolidCitric cartridges.

Aker Solutions LRP adapter

Aker LRP adapter

P/NP159
Weight,dry27 kg + P009 Wellhead tool
Weight,wet 7 kg + P009 Wellhead tool
AvailabilityPurchase or rental

This adapter is designed for acid cleaning an Aker LRP mandrel. It is used in conjunction with our P009 Wellhead tool.

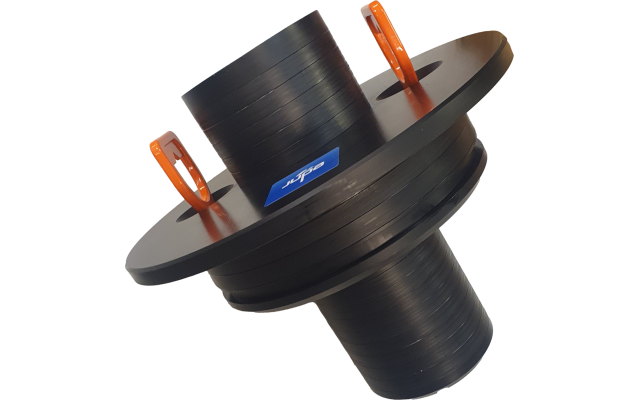

Upper Crown Plug Installation Guide Tool (UCPIGT)

Baker Hughes (Vetco) Upper Crown Plug Installation Guide Tool

P/NP170
Weight,dry47 kg
Weight,wet13 kg
AvailabilityPurchase or rental

This tool was designed to easier enable a vessel to install an upper crown plug by providing centralization in bore.

OneSubsea TC Stinger

OneSubsea (Cameron) - Tree cap stinger adapter

P/NP065
Weight,dry31 kg
Weight,wet17 kg
AvailabilityPurchase

This adapter is designed for acid treating a vertical OneSubsea (Ex. Cameron) tree cap stinger. The adapter seals around the stinger base and also cleans the inner wall of the hub. The design enables a very efficient acid treatment.

FMC MQC Mk2

TechnipFMC - MQC13 Mk2 adapter

P/NP017
Weight,dry25 kg
Weight,wet19 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating TechnipFMC MQC13 Mk2 receptacles. Soft rubber caps seal around the hydraulic connectors and enables a very efficient acid treatment. The adapter has a snap lock function with the fingers in centre of the adapter made from the engineering polymer PEEK.

Extended FMC MQC Mk2

TechnipFMC - Extended MQC13 Mk2 adapter

P/NP080
Weight,dry27 kg
Weight,wet21 kg
AvailabilityPurchase or rental

This variation of our P017 adapter is designed to be used where there are access obstructions above the MQC receptacle on the Christmas tree.

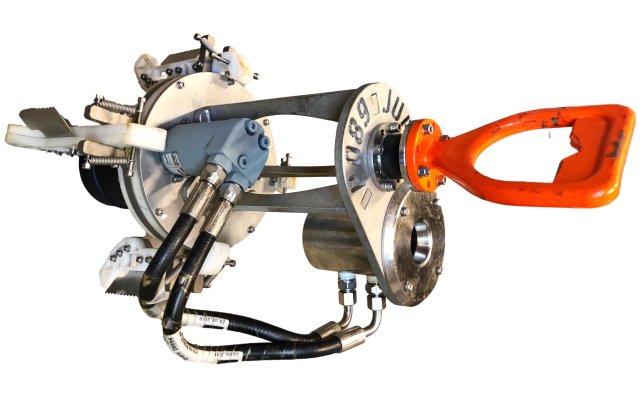

Hydraulic cleaning tool

Hydraulic external hub cleaning tool

P/NP089
Weight,dry19 kg
Weight,wet14 kg
AvailabilityPurchase or rental

This compact and simple hydraulic cleaning tool is innovative in several ways. First of all it does not brush, but it scrapes. The scrapers are designed to match the external geometry of the hub which it is meant to clean. This enables a highly efficient cleaning.
The scrapers are 316L by default, but can be replaced with any softer material if there is a potential risk of damaging seal areas, etc.
The scrapers also have "wings" for hydrodynamic downforce which counteracts the sentrifugal force that are working the opposite way.
The tool can be delivered with or without a hot stab receptacle; your choice.
Note that the design is generic - please contact us with your requirements!

The tool shown was tailored for cleaning the outside of a 5-inch Baker Hughes (Vetco) mandrel.

Cameron MQC

OneSubsea (Cameron) - Vertical MQC adapter

P/NP050
Weight,dry20 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This adapter is designed for acid treating a vertical OneSubsea (Ex. Cameron) MQC interface. Vacant snaptite coupler positions are identified and blinded off under adapter prior to installation.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

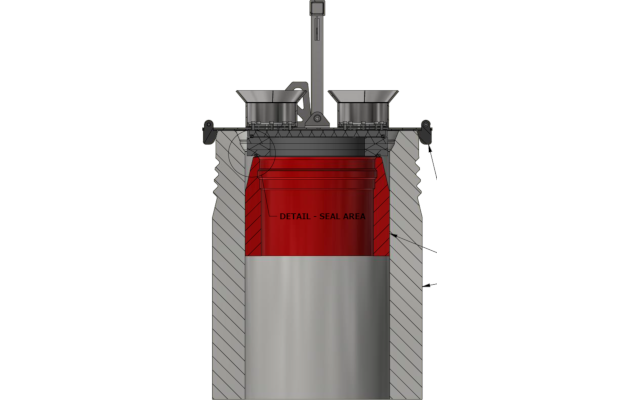

18 3/4'' hub

18 3/4'' hub adapter

P/NP009
Weight,dry33 kg + insert
Weight,wet30 kg + insert
AvailabilityPurchase or rental

This adapter is designed for cleaning 18 ¾’’ hubs using SolidCitric. Various interface inserts can be mounted to the adapter in order to fit any 18 ¾’’ configuration. The tool is fitted with two SolidCitric cartridge slots if a large volume is required to be saturated.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Mini Handling adapter

Mini handling adapter

P/NP037
Weight,dry6 kg
Weight,wet5 kg
AvailabilityPurchase or rental

This tool is used to handle the 1,3kg SolidCitric cartridges with the ROV. The SolidCitric cartridge is inserted into the handling adapter and a dedicated nose adapter for the interface to be cleaned is then mounted to the mini handling adapter.

gas measuring tool

Gas measuring and sampling tool

P/NP052
Weight,dry11 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This tool is used to measure gas leak rates and includes the capability to take a sample of it in a 150cc bottle. The lower funnel is detachable and interchangeable for various sizes.
The sampling assembly designed by us with Swagelok components throughout is AISI 316 and TPED compliant.
The assembly includes a rupture disk which bursts at 130bar, therefore maximum reccommended sampling water depth is 1000m.
Note that the sampling section of the tool is only available for purchase, whereas the tool itself is also available for rental.

1-ton jack

1-ton coupler jack

P/NP122
Weight,dry8 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This compact hydraulic jack is used to help provide a straight and controlled pull on electrical and hydraulical couplers in cases where our SolidCitric product does not suffice.
The jack is highly modular and is designed to allow painless modifications by ROV personnel offshore.
Stainless construction, delivers 1 ton pull at 210bar, JIC-4 end fittings on hoses.

4'' Tree Cap hub

TechnipFMC - 4'' Tree Cap hub adapter

P/NP014
Weight,dry14 kg
Weight,wet12 kg
AvailabilityPurchase or rental

This adapter is designed for acid cleaning of 4'' TechnipFMC Tree Cap (TC) hubs. The adapter has a simple construction with internal seals for providing an efficient and localised acid treatment of 4'' TC hubs. The SolidCitric cartridge is inserted into the top of the adapter.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Unitech UH-550 receptacle

Unitech - UH-550 receptacle adapter

P/NP165
Weight,dry33 kg
Weight,wet12 kg
AvailabilityPurchase or rental

This adapter is designed for acid cleaning the Unitech UH-550 receptacle. The SolidCitric cartridge is inserted into the top of the adapter.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

4'' Tree Cap hub KX insert milling and brushing tool

TechnipFMC - 4'' TC KX milling and brushing tool

P/NP175
Weight,dry9 kg
Weight,wet7 kg
AvailabilityPurchase

This hydraulic tool was developed to remove heavy scaling from the KX inserts located on the 4" TC hub prior to using our P014 SolidCitric TC adapter.
The tool is delivered with two heads; a milling head and a brushing head.
The milling head is soft aluminium with a geometry that is intended for reducing risk of damaging the seal surfaces.
The brushing head is made of plastic and Scotchbrite.
Furthermore there is a template which can be installed onto hub face to provide guiding for the milling & brushing heads.

External H4 mandrel adapter

External H4 mandrel adapter

P/NP079
Weight,dry59 kg
Weight,wet31 kg
AvailabilityPurchase

This adapter is designed for acid cleaning the exterior of a H4 ("Wellhead") mandrel. It is bolted onto our standard wellhead adapter (P009).

API 17H CL4 valve and 3/8'' manip valve

API 17H Cl.1-4 valve and 3/8'' manip valve

P/NP035
Weight,dry10 kg
Weight,wet8 kg
AvailabilityPurchase or rental

This adapter enables cleaning of vertical API 17H Cl.1 to Cl.4 valves or vertical 3/8’’ manip valves using a standard 6kg or 12kg SolidCitric cartridge.

Aker DHPT

Aker DHPT interface

P/NP134
Weight,dry10 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This adapter enables cleaning of Aker Solutions DHPT valve interface using a standard 6kg or 12kg SolidCitric cartridge.

Clamp screw adapter

Adapter for cleaning bolt threads

P/NP111
Weight,dry19 kg
Weight,wet13 kg
AvailabilityPurchase

This adapter enables acid cleaning of bolt threads on typically a clamp connector using a standard 6kg or 12kg SolidCitric cartridge. Note that the design is generic - please provide us with your specific requirements. It is a simple design - just clamp around the exposed bolt section which you want to clean and hang off the acid cartridge receptacle in nearby structure.

Preservation cap

KC4.2-12 preservation cap

P/NP086
Weight,dry8 kg
Weight,wet N/A
AvailabilityPurchase

This is a preservation cap to be installed in a TechnipFMC KC4.2-12 connector.

 Vetco 5-inch mandrel and national couplers

Baker Hughes (Vetco)- 5" mandrel and coupler adapter

P/NP088
Weight,dry80 kg
Weight,wet23 kg
AvailabilityPurchase

This adapter enables simultaneous acid cleaning of both the 5-inch mandrel and its associated national couplers using a standard 12kg SolidCitric cartridge.

Moffat 2'' receptacle adapter

Moffat - 2'' receptacle adapter

P/NP044
Weight,dry7 kg + P037
Weight,wet5 kg + P037
AvailabilityPurchase

This adapter enables cleaning of a (vertical) 2'' Moffat receptacle.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180).
Either the included parking receptacle or the seal pin may be used to keep acid from dissolving prior to installation.

Moffat 4'' receptacle adapter

Moffat - 4'' receptacle adapter

P/NP059
Weight,dry11 kg + P037
Weight,wet6 kg + P037
AvailabilityPurchase

This adapter enables cleaning of a (vertical) 4'' Moffat receptacle.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180).
A sealing pin is used to keep acid from dissolving prior to installation.

Single Line Connector

TechnipFMC - Single Line Connector

P/NP013
Weight,dry1 kg + P037
Weight,wet0 kg + P037
AvailabilityPurchase or rental

This nose adapter is designed for acid cleaning of Single Line Connectors. The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). A parking receptacle for bolting onto the ROV or basket is included with this tool.

Stuck Single Line Connector

TechnipFMC - Stuck Single Line Connector

P/NP013
Weight,dry14 kg
Weight,wet7 kg
AvailabilityPurchase

This nose adapter is designed for acid cleaning of a stuck (connected) Single Line Connector. It incorporates a layered flexible sleeve that seals around the jumper cable. It is used in conjunction with our standard 6 or 12 kg SolidCitric cartridge.

Stuck Single Line Connector Cap

TechnipFMC - Stuck SLC Cap

P/NP222
Weight,dry16 kg
Weight,wet7 kg
AvailabilityPurchase

This adapter is designed for acid cleaning of a stuck (connected) SLC cap. It incorporates a magnetic base to keep it firmly attached. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

Stuck 1'' high flow dummy stab

Aker Solutions - Stuck 1'' high flow dummy stab

P/NP227
Weight,dry29 kg
Weight,wet5 kg
AvailabilityPurchase

This adapter is designed for acid cleaning of a stuck (connected) Aker Solutions 1'' dummy high flow stab. It incorporates a magnetic base to keep it firmly attached. It is used in conjunction with our standard 6 kg SolidCitric cartridge.

API 17H CL4 valve rubber adapter

API 17H Cl. 1-4 valve rubber adapter

P/NP043
Weight,dry1 kg
Weight,wetNegligable
AvailabilityPurchase

This adapter enables cleaning of horizontal or vertical API 17H Cl. 1-4 valve buckets using a standard 6kg or 12kg SolidCitric cartridge. The valve rubber adapter is fitted around the SolidCitric cartridge on deck in order to provide a fit into API 17H Cl. 1-4 valve buckets.
Note that this adapter will not fit on a 3/8'' manip valve interface.

Handling adapter

Handling adapter

P/NP016
Weight,dry5 kg
Weight,wet4 kg
AvailabilityPurchase or rental

This tool is used to handle the SolidCitric cartridges with the ROV. The tool comprises a D-handle and a flexjoint which is mounted on a closed end pipe section. The SolidCitric cartridge is inserted into the handling adapter and is fastened by tightening a number of set screws. An internal neoprene seal in the handling adapter ensures that no acid becomes washed out. Note that we also have a lightweight version available (POM-C construction) which has the same functionality as the stainless steel version.

KC4-10 hub adapter

TechnipFMC - KC4-10 hub adapter

P/NP040
Weight,dry21 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning TechnipFMC KC4-10 hub.
It is installed horizontally onto the hub from the front.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

KC4-12 hub adapter

TechnipFMC - KC4-12 hub adapter

P/NP151
Weight,dry25 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning TechnipFMC KC4-12 hub (7" ID bore + 2 x 2").
It is installed horizontally onto the hub from the front.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

KC4-12 hub acid and preservation adapter

TechnipFMC - KC4-12 acid and preservation adapter

P/NP200
Weight,dry26 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This adapter is designed for acid cleaning a TechnipFMC KC4-12 hub (with a single 10" ID) as well as serving as a long term preservation cap.
It is installed horizontally onto the hub from the front and it has a simple locking mechanism.
It has a compartment for Roemex inhibition sticks (RX-5975 137gr) and a sealing plug that can be installed in the tool receptacle
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Vetco MQC protection cap

Baker Hughes (Vetco) - MQC protection cap

P/NP132
Weight,dry14 kg
Weight,wet4.5 kg
AvailabilityPurchase

This is designed to be used as a long term protection cap for Baker Hughes (Vetco) MQC stabplates.
It has pockets and internal distribution channels for scavenger pills.
Note that this cap is not intended for use with our SolidCitric cartridges. The cap has a locking mechanism to ensure that it remains securely in place over time.

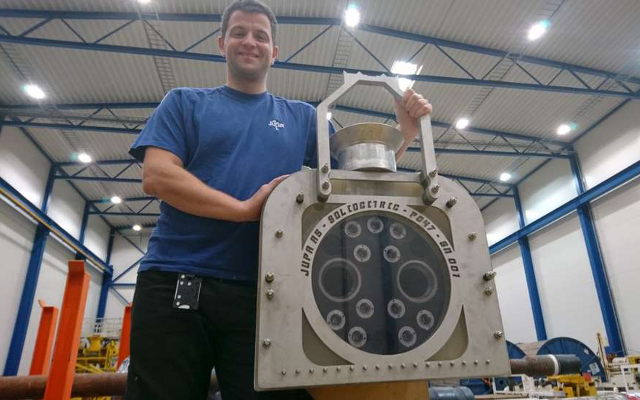

Snorre UPA manifold hub

OneSubsea (Cameron) - Snorre UPA manifold hub

P/NP047
Weight,dry41 kg
Weight,wet17 kg
AvailabilityPurchase

This horse shoe adapter is designed for cleaning the horizontal OneSubsea (Ex. Cameron) - Snorre UPA manifold hub.
It is installed vertically onto the hub from the top.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Baker Hughes 2 and 5-inch mandrel

Baker Hughes - 2'' and 5'' flowline mandrel adapter

P/NP141
Weight,dry25 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning both the 2-inch and the 5-inch flowline mandrel simultaneously.
It is installed vertically onto the mandrels from the top.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

HCLD sensor adapter

HCLD sensor adapter

P/NP058
Weight,dry1,6 kg + P037
Weight,wet1,0 kg + P037
AvailabilityPurchase

This nose adapter was designed for cleaning a HCLD sensor head with a 62mm OD.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180).
A sealing plug is placed in the nose to keep acid from dissolving prior to installation.

Cartridge for mini handling adapter

1.3 kg SolidCitric cartridge

P/N100000180
Weight,dry1,3 kg + P037
Weight,wet1,0 kg + P037
AvailabilityPurchase

This cartridge is to be used in conjunction with the P037 Mini Handling adapter

Download SolidCitric MSDS

12'' Wing Hub/13 5/8'' Re-entry Hub

TechnipFMC - 12'' Wing Hub and 13 5/8'' Re-entry Hub adapter

P/NP031
Weight,dry26 kg
Weight,wet21 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning TechnipFMC 12’’ Wing Hub using SolidCitric.
The tool can also be used to clean TechnipFMC 13 5/8’’ re-entry hubs and choke bridge hubs.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

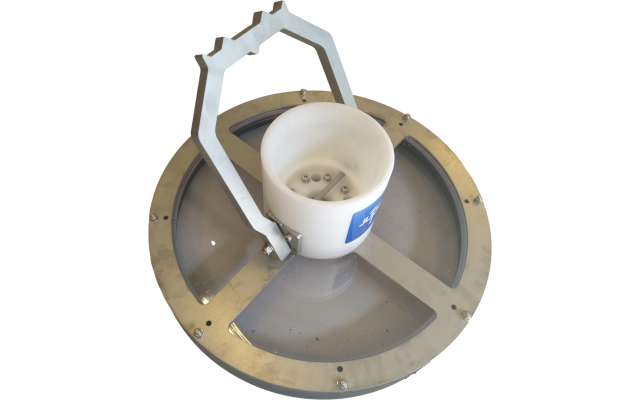

13 5/8'' Re-entry Hub - ID 530 mm

Vertical hub adapter - ID 530 mm

P/NP156
Weight,dry24 kg
Weight,wet13 kg
AvailabilityPurchase or rental

This adapter will fit TechnipFMC 13 5/8’’ re-entry hubs and choke bridge hubs perfectly - just check that its ID of 530mm is a good fit in relation to your hubs OD.
The internal swallow/height of this adapter is 50 mm.
This adapter is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Vertical hub ID 548 mm

Vertical hub adapter - ID 548 mm

P/NP155
Weight,dry23 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This adapter is intended to over time replace our successful P031 adapter.
This adapter will fit the TechnipFMC 12-inch wing hub perfectly - For other hubs just check that its ID of 548 mm is a good fit in relation to your hubs OD.
The internal swallow/height of this adapter is 50 mm.
This adapter is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Vertical hub ID 431 mm

Vertical hub adapter - ID 431 mm

P/NP161
Weight,dry19 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter will fit the TechnipFMC (Ex. KOS) Template Control Module Base (TCMB) perfectly - For other hubs just check that its ID of 431 mm is a good fit in relation to your hubs OD.
The internal swallow/height of this adapter is 50 mm.
This adapter is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Horizontal Cl.4 adapter

Horizontal API 17H Cl.1-4 adapter

P/NP057
Weight,dry14 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning horizontal API 17H Cl. 1-4 receptacles
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Cl.6 adapter

API 17H Cl. 6 adapter

P/NP061
Weight,dry13 kg
Weight,wet4 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning API 17H Cl. 6 receptacles.
It is compatible with our standard 6 kg SolidCitric cartridges. A sealing plug is removed with ROV prior to installation.

Norne MQC

TechnipFMC - Norne MQC

P/NP039
Weight,dry20 kg
Weight,wet16 kg
AvailabilityPurchase

This adapter is designed for cleaning a TechnipFMC vertical Norne MQC.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

UTH MQC

Baker Hughes (Vetco) - UTH MQC

P/NP113
Weight,dry19 kg
Weight,wet11 kg
AvailabilityPurchase

This configurable adapter is designed for cleaning a Baker Hughes (Vetco) vertical UTH MQC.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Aker Solutions 10-way MQC

Aker Solutions - 10 way MQC

P/NP189
Weight,dry25 kg
Weight,wet3 kg
AvailabilityPurchase or rental

This configurable adapter is designed for cleaning an Aker Solutions 10-way MQC.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

RIMS 22W MQC

Aker Solutions - RIMS 22W

P/NP178
Weight,dry26 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning a Aker Solutions RIMS 22-way MQC.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

KC4-12

TechnipFMC - KC4-12 adapter

P/NP118
Weight,dry22 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning a TechnipFMC vertical KC4-12 hub.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Vetco TR-CC mandrel

Baker Hughes (Vetco) - 16" TR-CC mandrel adapter

P/NP120
Weight,dry24 kg
Weight,wet11 kg
AvailabilityPurchase or rental

This configurable adapter is designed for cleaning a Baker Hughes (Vetco) vertical 16-inch TR-CC mandrel.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

2XLF/152

Baker Hughes (Vetco) - 2XLF/152 hub adapter

P/NP182
Weight,dry30 kg
Weight,wet9 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning a horizontal Baker Hughes (Vetco) 2XLF/152 hub.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Jumper end cleaner

Jumper end connector cleaner

P/NP063
Weight,dry20 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning the jumper end electric connectors. It has been designed and used for 4-7 pin Tronic (Siemens) plug connectors, but it can also be used for other types. Ask us about this. Please note that the nose in end is for parking the tool in nearby Class 1-4 receptacle. This nose is however removable and the tool can then be installed on any flat magnetic structure. The magnets are not installed by default.
It is used in conjuction with our P037 mini handling adapter and is therefore compatible with our standard 1,3 kg SolidCitric cartridges.
Note that we also have a "banana shaped" version with same functionality which is designed to rest on top of SCM's.

60knm valve

Vertical 60 kNm valve adapter

P/NP109
Weight,dry14 kg
Weight,wet5 kg
AvailabilityPurchase

This adapter is designed for cleaning the stem of a vertical 60 kNm valve. ID of the tool is Ø260 mm. Internal height clearance in tool is 273 mm.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

4/7 pin Tronic receptacle adapter

4/7 pin Tronic receptacle adapter

P/NP023
Weight,dry4 kg + P037
Weight,wet3 kg + P037
AvailabilityPurchase or rental

This adapter is designed for cleaning a 4 or 7 pin Siemens "Tronic" receptacle.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). An ROV removable nose sealing pin is included.

Walther receptacle brushing tool

Walther receptacle brushing tool

P/NP146
Weight,dry8 kg
Weight,wet6 kg
AvailabilityPurchase or rental

This hydraulic brushing tool is designed for cleaning the inside of a Walther receptacle.
The brushing tool is designed to slide over the receptacle and not require to be held during brushing ops.
There is also a suction feature on the tool that evacuates all freed particles.
Nose head with ScotchBrite pads is easily replaceable and is also designed to avoid causing any contact with check valve within receptacle.
During testing this tool cleaned a receptacle in less than two minutes!

4/7 pin Tronic plug adapter

4/7 pin Tronic plug adapter

P/NP069
Weight,dry1 kg + P037
Weight,wet0,5 kg + P037
AvailabilityPurchase or rental

This adapter is designed for cleaning a 4 or 7 pin Siemens "Tronic" plug.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). An ROV removable nose sealing pin is included.

12 pin Tronic receptacle adapter

12 pin Tronic recptacle adapter

P/NP097
Weight,dry1 kg + P037
Weight,wet0,5 kg + P037
AvailabilityPurchase or rental

This adapter is designed for cleaning a 12 pin Siemens "Tronic" receptacle.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). An ROV removable nose sealing pin is included.

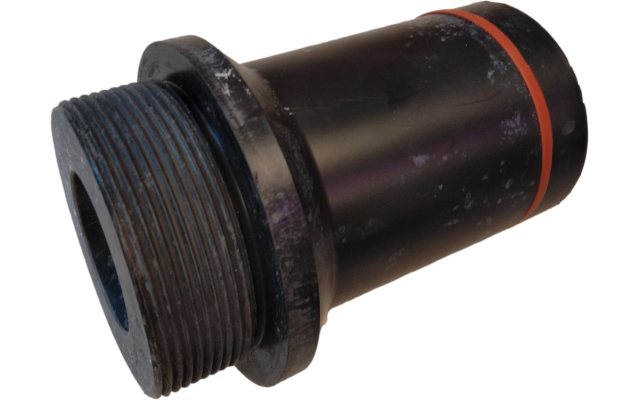

12 pin Tronic plug adapter

12 pin Tronic plug adapter

P/NP091
Weight,dry1 kg + P037
Weight,wet0,3 kg + P037
AvailabilityPurchase or rental

This adapter is designed for cleaning a 12 pin Siemens "Tronic" plug.
The nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). An ROV removable nose sealing pin is included.

Walther coupler hydraulic jack

Coupler hydraulic jack

P/NP145
Weight,dry14 kg
Weight,wet12 kg
AvailabilityPurchase

This hydraulic jack is designed to grip around receptacle and latch onto a stuck Walther coupler.
The jack can pull with approximately 1 ton. In order to provide sufficient reaction force there are also two slender legs that are designed to rest against the receptacle flange.

Walther coupler mechanical jack

Coupler mechanical jack

P/NP149
Weight,dry17 kg
Weight,wet15 kg
AvailabilityPurchase

This mechanical jack is designed to rest against receptacle and latch onto a stuck Walther coupler. It locks itself so that the tool can be installed and operated with solely one manipulator.

Walther coupler adapter

Walther coupler adapter

P/NP143
Weight,dry16,8 kg total
Weight,wet7,8 kg total
AvailabilityPurchase or rental

This adapter is designed for cleaning a Walther coupler when it is mated (stuck) in receptacle. It is designed to snap on and seal around jumper to reduce acid loss.
This nose adapter must be used in conjunction with the handling Adapter (P/N P016) and our standard 6 kg SolidCitric cartridge. An ROV removable nose sealing pin is included.

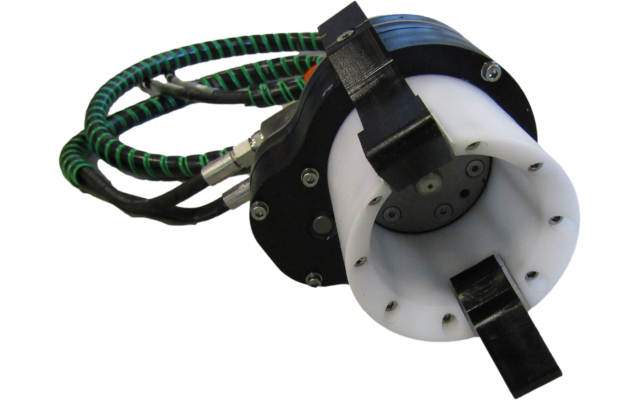

Walther coupler torque tool

Walther coupler torque tool

P/NP150
Weight,dry19 kg total
Weight,wet16 kg total
AvailabilityPurchase or rental

This hydraulic torque tool is designed for untorquing a Walther coupler when it is mated in receptacle. It is designed to snap onto top of coupler.
It also has a visual turn counter. It is designed to deliver a torque which is within allowable stated limits of the Walther coupler.

9-inch flowline hub adapter

9'' flowline hub adapter

P/NP152
Weight,dry20 kg total
Weight,wet11 kg total
AvailabilityPurchase or rental

This adapter is designed to acid clean a vertical 9-inch flowline hub.
It is compatible with our standard 6 and 12 kg SolidCitric cartridges.

Walther receptacle adapter

Walther receptacle (Ø96) adapter

P/NP144
Weight,dry1,6 kg + P037
Weight,wet0,5 kg + P037
AvailabilityPurchase or rental

This adapter is designed for cleaning a Walther receptacle (Ø96 and length 150 mm). It is intended used after disconnecting coupler from receptacle (Use P143 adapter if the coupler is stuck).
This nose adapter must be used in conjunction with the MINI Handling Adapter (P/N P037) and 1,3kg SolidCitric cartridge (P/N 100000180). An ROV removable nose sealing pin is included.

6 kg SolidCitric

6 kg SolidCitric

P/N100000148
Weight,dry6 kg
Weight,wet2 kg
AvailabilityPurchase

To be used in conjunction with P016 Handling Adapter

Download SolidCitric MSDS

12 kg SolidCitric

12 kg SolidCitric

P/N100000149
Weight,dry12 kg
Weight,wet4 kg
AvailabilityPurchase

To be used in conjunction with P016 Handling Adapter

Download SolidCitric MSDS

Vetco MQC adapter

Baker Hughes (Vetco) MQC adapter

P/NP131
Weight,dry16,4 kg
Weight,wet3,8 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning a Vetco 9-way MQC (Female stabplate).
It is compatible with our standard 6 kg or 12 kg SolidCitric cartridges.

Vetco Flowline hub

Baker Hughes (Vetco) 5K flowline mandrel adapter

P/NP054
Weight,dry88 kg
Weight,wet38 kg
AvailabilityPurchase or rental

This adapter is designed for cleaning a Baker Hughes (Vetco) 5KPSI flowline connector mandrel including the lower associated National couplers on base below.
Note that the tool has been designed to have a perfect CoG during lifting/handling so it will not hang at a angle.
It is compatible with our standard 6 kg or 12 kg SolidCitric cartridges.

Baker Hughes (Vetco) Hydraulic coupler panel adapter

Baker Hughes (Vetco) hydraulic coupler adapter

P/NP219
Weight,dry27 kg
Weight,wet7 kg
AvailabilityPurchase

This adapter is designed for cleaning a Baker Hughes (Vetco) National couplers on base below mandrel.
It is compatible with our standard 6 kg or 12 kg SolidCitric cartridges.

Vetco symmetrical flowline hub

Baker Hughes (Vetco) flowline mandrel adapter

P/NP191
Weight,dry103 kg
Weight,wet25 kg
AvailabilityPurchase

This adapter is designed for cleaning a Baker Hughes (Vetco) flowline connector mandrel including the lower associated National couplers on base below.It is compatible with our standard 6 kg or 12 kg SolidCitric cartridges.

Chemical stick insertion tool

Inhibition stick drop tool- 9'' FL hub

P/NP153
Weight,dry20 kg
Weight,wet10 kg
AvailabilityPurchase or rental

This adapter is designed for dropping a Roemex chemical inhibition stick into bore of a 9-inch flowline hub.
It is operated by releasing a lock and then rotating the handle.
Using such a tool mitigates risk of accidentally damaging hub seal surfaces with manipulator.

Chemical stick insertion tool

Inhibition stick drop tool- KC4-12 hub

P/NP148
Weight,dry18 kg
Weight,wet7 kg
AvailabilityPurchase or rental

This adapter is designed for simultanously dropping a variety of Roemex chemical inhibition sticks into the 6"bore and the two 2" bores of a KC4-12 hub.
It is operated by releasing a lock and then rotating the handle.
Using such a tool mitigates risk of accidentally damaging hub seal surfaces with manipulator.

P009 type 2 configuration standard insert

P009-002 (std. insert)

Dwg.NumberP009-JUPA-U-XD-002
Assembled weight,dry40,6 kg
Assembled weight,wet27,3 kg
AvailabilityPurchase or rental

This insert is designed for a bore with ID of 473,0 mm and protrudes 135 mm below top of mandrel. It is designed to primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

P009 type 3 configuration 24,5mm insert

P009-003

Dwg.NumberP009-JUPA-U-XD-003
Assembled weight,dry37,3 kg
Assembled weight,wet27,8 kg
AvailabilityPurchase or rental

This insert protrudes 24,5 mm below top of mandrel. It is designed to primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

GA - P009 type 1 configuration flush insert

P009-004

Dwg.NumberP009-JUPA-U-XD-004
Assembled weight,dry48,0 kg
Assembled weight,wet31,7 kg
AvailabilityPurchase or rental

This insert is designed to rest and seal on top of mandrel. It is designed to primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

Type 3 config. 86mm insert

P009-005

Dwg.NumberP009-JUPA-U-XD-005
Assembled weight,dry42,5 kg
Assembled weight,wet27,5 kg
AvailabilityPurchase or rental

This insert has an OD of 460 mm and protrudes 86 mm below top of mandrel. It is designed to rest and seal on top of an ITC. It is designed to primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

P009 type 3 configuration 14,2mm insert

P009-006

Dwg.NumberP009-JUPA-U-XD-006
Assembled weight,dry37,0 kg
Assembled weight,wet27,7 kg
AvailabilityPurchase or rental

This insert has an upper OD of 500 mm and at this OD it protrudes 12 mm below top of mandrel. The insert has a lower OD of 367 mm which protrudes a further 8 mm down. It is designed to rest and seal on top of an ITC and it will primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

P009 type 1 configuration protruding insert

P009-007

Dwg.NumberP009-JUPA-U-XD-007
Assembled weight,dry59,1 kg
Assembled weight,wet25,9 kg
AvailabilityPurchase or rental

This insert protrudes 276 mm above top of mandrel. It is designed to rest and seal on top of the H4 mandrel and it will primarily acid clean VX seal area with a secondary spillover to bore. It is used in conjunction with 18 3/4'' hub adapter (P009).

P009 adapter for type 2 std. insert

P009-008

Dwg.NumberP009-JUPA-U-XD-008
Assembled weight,dry54,5 kg
Assembled weight,wet31,4 kg
AvailabilityPurchase or rental

This insert protrudes 245 mm below top of mandrel and is designed to seal a bore which has an ID of 473,0 mm. It is used in conjunction with 18 3/4'' hub adapter (P009) and P009-002 insert.

P009 type 2 configuration 18.969''

P009-009

Dwg.NumberP009-JUPA-U-XD-009
Assembled weight,dry42,2 kg
Assembled weight,wet27,5 kg
AvailabilityPurchase or rental

This insert protrudes 135 mm below top of mandrel and is designed to seal a bore which has an estimated ID of 481,8 mm. It is used in conjunction with 18 3/4'' hub adapter (P009).

P009 adapter with extension for type 2 std. insert

P009-010

Dwg.NumberP009-JUPA-U-XD-010
Assembled weight,dry52,6 kg
Assembled weight,wet31,4 kg
AvailabilityPurchase or rental

This insert protrudes 295 mm below top of mandrel. It is used in conjunction with 18 3/4'' hub adapter (P009) and P009-002 insert.

P009 type 2 configuration standard insert w/ locking ring

P009-011

Dwg.NumberP009-JUPA-U-XD-011
Assembled weight,dry53,3 kg
Assembled weight,wet26,8 kg
AvailabilityPurchase or rental

This is a variant that has mechanical lock that locks tool externally onto H4 mandrel. It was made to meet some clients requirement of having a physical lock. It is here used in conjunction with 18 3/4'' hub adapter (P009) and P009-002 insert, although it can also be used with other internal inserts.

As installed on AS Aerfugl WH

P009-012

Dwg.NumberP009-JUPA-U-XD-012
Assembled weight,dry70,5 kg
Assembled weight,wet39,6 kg
AvailabilityPurchase or rental

This insert was designed with two acid distribution paths - the top one cleans the upper seal areas and the second one distributes acid in the hydraulic coupler area.

P009 type 2 configuration 95mm insert

P009-013

Dwg.NumberP009-JUPA-U-XD-013
Assembled weight,dry44,8 kg
Assembled weight,wet26,5 kg
AvailabilityPurchase or rental

This insert protrudes 95 mm below top of mandrel.

P009 EVDT insert as installed

P009-014

Dwg.NumberP009-JUPA-U-XD-014
Assembled weight,dry54,4 kg
Assembled weight,wet24,5 kg
AvailabilityPurchase or rental

This insert protrudes 265 mm below top of mandrel. It was desgned to fit a TechnipFMC EVDT (Enhanced Vertical Deepwater Tree).

P009 Vetco MS-700 insert as installed

P009-015

Dwg.NumberP009-JUPA-U-XD-015
Assembled weight,dry87 kg
Assembled weight,wet29 kg
AvailabilityPurchase

This insert was desgned to fit a Vetco MS-700 wellhead.

P009 OneSubsea WH with TH insert as installed

P009-016

Dwg.NumberP009-JUPA-U-XD-016
Assembled weight,dry47 kg
Assembled weight,wet23 kg
AvailabilityPurchase

This insert was desgned to fit a OneSubsea wellhead with Tubing Hanger (TH).

P009 OneSubsea (Cameron) WH with protruding ITC insert as installed

P009-017

Dwg.NumberP009-JUPA-U-XD-017
Assembled weight,dry99 kg
Assembled weight,wet54 kg
AvailabilityPurchase

This insert was desgned to fit a Cameron (OneSubsea) wellhead with a protruding ITC (Internal Tree Cap).

P009 Aker Solutions WH with protruding TH (Tubing hanger) insert as installed

P009-018

Dwg.NumberP009-JUPA-U-XD-018
Assembled weight,dry68 kg
Assembled weight,wet21 kg
AvailabilityPurchase

This insert was desgned to fit a Aker Solutions wellhead with a protruding Tubing Hanger (TH).

P009 OneSubsea WH with protruding TH (Tubing hanger) insert as installed

P009-019

Dwg.NumberP009-JUPA-U-XD-019
Assembled weight,dry78 kg
Assembled weight,wet26 kg
AvailabilityPurchase

This insert was desgned to fit a OneSubsea wellhead with a protruding Tubing Hanger (TH).

P009 Aker Solutions WH (same as XD-007) insert with brushing - as installed

P009-020

Dwg.NumberP009-JUPA-U-XD-020
Assembled weight,dry86 kg
Assembled weight,wet28 kg
AvailabilityPurchase

This insert fits the same as P009-007, but this variant incorporates Scotchbrite brushing for the (AX/VX) seal area.

Next tool - Ask us

Adapter tailor-made for your interface

P/NTBD
Weight,dryTBD kg
Weight,wetTBD kg
AvailabilityPurchase

We are ready to assist with designing and fabricating the adapter you need for your application. Alternatively, you may choose to make this adapter yourself to fit with a standard SolidCitric cartridge from our assortment.
Please contact us and we will find the best solution!

  • Baker Hughes 5K flowline connector mandrel adapter

    FL 5K connector adapter

    Baker Hughes

  • 6'' Taper-Lok flange adapter

    6'' Taper-Lok flange adapter

    Generic

  • TechnipFMC 4'' x 2'' GLL Production XMAS tree adapter

    4'' x 2'' GLL Prod XT 5K adapter

    TechnipFMC

  • TechnipFMC KC4-12 acid cleaning and inhibition preservation adapter

    KC4-12 (10''ID) acid and inhibition cap

    TechnipFMC

  • Baker Hughes 5'' protection and inhibition cap

    5'' Protection & inhibition cap

    Baker Hughes

  • Optime 4'' female hub adapter

    4'' female hub adapter

    Optime Subsea

  • Baker Hughes national coupler panel adapter

    National coupler panel adapter

    Baker Hughes

  • Destec 10'' inboard hub adapter

    10'' IB hub adapter

    Destec

  • Stuck 1'' high flow dummy stab adapter

    Stuck 1'' HF dummy stab adapter

    Aker Solutions

  • DrillQuip D6 adapter

    D6 XT mandrel adapter

    Dril-Quip

  • Bellmouth and J-tube adapter

    Bellmouth and J-tube adapter

    Generic

  • Destec 10'' IB seal ring tool

    10'' IB seal ring tool

    Destec

  • Destec 10'' brushing tool

    10'' IB hub brushing tool

    Destec

  • Destec 10'' OB hub debris cap

    10'' OB hub debris cap

    Destec

  • 2-inch Norvalve pressure cap jack

    2'' pressure cap jack

    Norvalves

  • Baker Hughes flowline connector mandrel adapter

    FL connector adapter

    Baker Hughes

  • Destec 10'' clamp adapter

    10'' clamp adapter

    Destec

  • Cameron CC40 XMT choke adapter

    CC40 XMT choke adapter

    OneSubsea

  • Aker Solutions ITC brushing tool

    ITC brushing tool

    Aker Solutions

  • Aker Solutions RTS 12'' clamp adapter

    RTS 12'' clamp adapter

    Aker Solutions

  • Guide post receptacle adapter

    Guide post receptacle adapter

    Generic

  • MWA clamp adapter

    Wedge adapter for clamp

    Generic

  • Aker Solutions HCM adapter

    12'' Manifold hub adapter

    Aker Solutions

  • Baker Hughes 2XLF/152 adapter

    2XLF/152 hub adapter

    Baker Hughes

  • Aker Solutions RIMS 22W adapter

    RIMS 22W adapter

    Aker Solutions

  • Onesubsea RIMS 14W adapter

    RIMS 14W adapter

    Onesubsea

  • Aker Solutions 10W adapter

    10-Way MQC adapter

    Aker Solutions

  • Onesubsea RIMS 28W adapter

    RIMS 28W adapter

    OneSubsea

  • Walther flying lead handling tool

    Flying lead handling tool

    Walther

  • Tie-in receptacle adapter

    Tie-in receptacle adapter

    Generic

  • Unitech UH-550 receptacle brushing tool

    UH-550 hydraulic brush tool

    Unitech

  • Unitech UH-550 adapter

    UH-550 acid cleaning adapter

    Unitech

  • 18 3/4'' wellhead inclinometer

    18 3/4'' Inclinometer

    Generic

  • MQC coupler scrubber

    MQC coupler scrubber

    TechnipFMC

  • SCM Mounting Base adapter

    SCM Mounting Base adapter

    Baker Hughes

  • SCM Mounting Base adapter

    SCM Mounting Base adapter

    TechnipFMC

  • Snøhvit 14-way MQC adapter

    "Snøhvit" 14-way MQC adapter

    Baker Hughes

  • Snøhvit 4W MQC adapter

    "Snøhvit" 4-way MQC adapter

    Baker Hughes

  • fitting rotational restraint clamp

    Hydr. fitting rotational restraint clamp

    Generic

  • adapter for stuck ODI connector

    Adapter for stuck ODI connector

    Teledyne ODI

  • 2 and 5-inch flowline mandrel adapter

    2'' and 5'' FL mandrel adapter

    Baker Hughes

  • 8-inch Subseadesign Sealign flange adapter

    8'' Sealign flange adapter

    SubseaDesign

  • 12-inch Subseadesign Sealign flange adapter

    12'' Sealign flange adapter

    SubseaDesign

  • 9-inch flowline hub adapter

    9'' FL hub adapter

    TechnipFMC

  • Chemical stick insertion tool for 9-inch flowline

    Chem stick tool - 9'' FL hub

    TechnipFMC

  • Chemical stick insertion tool for KC4-12 hub

    Chem stick tool - KC4-12 hub

    TechnipFMC

  • Manual VX seal area scrubber

    Manual VX seal area scrubber

    Generic

  • Walther hydraulic coupler jack

    Hydraulic coupler jack

    Walther

  • Walther ROV parking stand

    ROV parking stand

    Walther

  • Walther brushing tool

    Receptacle brushing tool

    Walther

  • Aker DHPT

    DHPT valve adapter

    Aker Solutions

  • Stuck Walther coupler

    Adapter for stuck coupler

    Walther

  • Stuck NLI Asker 2-inch stab

    Adapter for 2-inch stab

    NLI Asker

  • Walther receptacle

    Adapter for receptacle (Ø96)

    Walther

  • Walther mechanical jack

    Mechanical coupler jack

    Walther

  • Walther hydraulic torque tool

    Hydraulic coupler torque tool

    Walther

  • Walther Manip adapter

    Manip square adapter

    Walther

  • Baker Hughes 14-way MQC

    14-way MQC adapter

    Baker Hughes

  • Stuck SMC coupler tools

    Tools for stuck SCM couplers

    Generic

  • FMC MQC Mk1

    MQC13 Mk1 adapter

    TechnipFMC

  • FMC MQC Mk2

    MQC13 Mk2 adapter

    TechnipFMC

  • Extended FMC MQC Mk2

    Extended MQC13 Mk2 adapter

    TechnipFMC

  • MQC protection cap

    MQC Protection cap

    Baker Hughes

  • hub cleaning tool

    Hydraulic 5'' hub cleaning tool

    Baker Hughes

  • 1-ton coupler jack

    Hydraulic coupler jack

    Generic

  • Baker Hughes paddle valve

    Paddle valve adapter

    Baker Hughes

  • TechnipFMC KC4.2-12

    KC4.2-12 adapter

    TechnipFMC

  • Aker Solutions HCM IB 12''-5''

    12'' Manifold hub adapter

    Aker Solutions

  • Gas measuring and sampling tool

    Gas meas. & sampling tool

    Generic

  • Bolt cleaning

    Bolt cleaning adapter

    Generic

  • Vetco 5-inch mandrel

    5" Mandrel & couplers

    Baker Hughes

  • Flat area cleaning

    Flat area acid cleaning tool

    Generic

  • Horizontal Cl.4 receptacle

    Horizontal Cl. 1-4 adapter

    Generic

  • Preservation cap

    KC4.2-12 preservation cap

    TechnipFMC

  • Preservation cap

    KC4.2-12 (w/guide pins) preservation cap

    TechnipFMC

  • Vertical TC stinger

    TC Stinger adapter

    OneSubsea

  • Vertical 16-inch TR-CC mandrel

    16" TR-CC mandrel adapter

    Baker Hughes

  • 60kNm valve

    Vertical 60kNm valve adapter

    Generic

  • Cl.6 receptacle

    Cl. 6 valve adapter

    Generic

  • API 17H CL4 valve and 3/8'' manip valve

    Cl.1-4 and 3/8'' adapter

    Generic

  • External H4 mandrel adapter

    External H4 mandrel adapter

    Generic

  • KC4-10 hub adapter

    KC4-10 hub (6"+2"+14HL) adapter

    TechnipFMC

  • KC4-12 hub adapter

    KC4-12 hub (7"+ 2x2") adapter

    TechnipFMC

  • API 17H CL4 valve rubber adapter

    Cl.1-4 valve rubber adapter

    Generic

  • API 17H Cl.5 valve adapter

    Cl.5 valve adapter

    Generic

  • 4'' Tree Cap hub adapter

    4'' Tree Cap hub adapter

    TechnipFMC

  • TechnipFMC - 4'' TC KX milling and brushing tool

    4'' TC KX milling and brushing tool

    TechnipFMC

  • KC4-12 hub adapter

    KC4-12 hub adapter

    TechnipFMC

  • Snorre UPA manifold hub

    Manifold hub adapter

    OneSubsea

  • Aker Solutions SCM MB GP adapter

    SCMMB guide post adapter

    Aker Solutions

  • Vertical Cameron MQC

    Vertical MQC adapter

    OneSubsea

  • Vertical Norne MQC

    "Norne" MQC adapter

    TechnipFMC

  • Vertical UTH MQC

    UTH MQC adapter

    Baker Hughes

  • Baker Hughes MQC

    9-way MQC adapter

    Baker Hughes

  • 12'' wing hub adapter

    12'' Wing Hub adapter

    TechnipFMC

  • Vertical hub adapter - ID 548 mm

    Hub adapter - ID 548 mm

    Generic

  • Vertical hub adapter - ID 530 mm

    Hub adapter - ID 530 mm

    Generic

  • Vertical hub adapter - ID 431 mm

    Hub adapter - ID 431 mm

    Generic

  • Cable end adapter

    Jumper end connector adapter

    Generic

  • Moffat 2'' receptacle adapter

    2'' receptacle adapter

    Moffat

  • Moffat 4'' receptacle adapter

    4'' receptacle adapter

    Moffat

  • 4/7 pin Tronic

    4/7P Tronic receptacle adapter

    Siemens

  • 4/7 pin Tronic plug

    4/7 pin Tronic plug adapter

    Siemens

  • 12 pin Tronic receptacle

    12 pin Tronic receptacle adapter

    Siemens

  • 12 pin Tronic plug

    12 pin Tronic plug adapter

    Siemens

  • SLC

    SLC adapter

    TechnipFMC

  • Stuck SLC

    Stuck SLC adapter

    TechnipFMC

  • Stuck SLC cap

    Stuck SLC cap adapter

    TechnipFMC

  • HCLD adapter

    HCLD sensor adapter

    For Mini Handling adapter

  • Mini Handling adapter

    Mini handling adapter

    ROV interface for SolidCitric

  • 1.3 kg SolidCitric cartridge for Mini Handling adapter

    1.3 kg SolidCitric

    For Mini Handling adapter

  • Handling adapter

    Handling adapter

    ROV interface for SolidCitric

  • 12 kg SolidCitric

    12 kg SolidCitric

    For Handling adapter

  • 6 kg SolidCitric

    6 kg SolidCitric

    For Handling adapter

  • upper crown plug installation guide tool

    Upper Crown Plug Guide tool

    Baker Hughes

  • 18 3/4'' hub adapter

    18 3/4'' hub adapter (WH tool)

    Generic

  • Aker LRP adapter

    LRP mandrel adapter

    Insert for WH tool - Aker

  • P009 type 2 configuration standard insert

    P009-002 (std. insert)

    Insert for WH tool

  • P009 type 3 configuration 24,5mm insert

    P009-003

    Insert for WH tool

  • GA - P009 type 1 configuration flush insert

    P009-004

    Insert for WH tool

  • P009 type 3 configuration 86mm insert

    P009-005

    Insert for WH tool

  • P009 type 3 configuration 14,2mm insert

    P009-006

    Insert for WH tool

  • P009 type 1 configuration protruding insert

    P009-007

    Insert for WH tool - Aker Solutions

  • P009 adapter for type 2 std. insert

    P009-008

    Insert for WH tool

  • P009 type 2 configuration 18.969''

    P009-009

    Insert for WH tool

  • P009 adapter with extension for type 2 std. insert

    P009-010

    Insert for WH tool

  • P009 type 2 configuration standard insert w/ locking ring

    P009-011

    External mechanical lock for WH tool

  • As installed on AS Aerfugl WH

    P009-012

    Insert for WH tool - Aker Solutions

  • P009 type 2 configuration 95mm insert

    P009-013

    Insert for WH tool

  • P009 EVDT insert as installed

    P009-014 (EVDT)

    Insert for WH tool - TechnipFMC

  • Vetco MS-700 insert as installed

    P009-015 (MS-700)

    Insert for WH tool - Baker Hughes

  • Onesubsea WH with TH insert as installed

    P009-016

    Insert for WH tool - OneSubsea

  • Onesubsea (Cameron) WH with protruding ITC insert as installed

    P009-017

    Insert for WH tool - OneSubsea

  • Aker Solutions WH with protruding TH insert as installed

    P009-018

    Insert for WH tool - Aker Solutions

  • OneSubsea WH with protruding TH insert as installed

    P009-019

    Insert for WH tool - OneSubsea

  • Aker Solutions WH (same as P009-007) with brushing - as installed

    P009-020

    Insert for WH tool w/brush - Aker Solutions

  • Next tool - Ask us

    We will design whatever you need

    Ask us!

This is Jupa

Founded in 2012, Jupa is a Norway based privately owned solution provider to the international oil & gas industry. Jupa largely comprises highly skilled subsea engineers with a background from Statoil (Equinor)and Subsea 7. An interesting fact is that 3 out of the 5 employees in Jupa are licensed pilots!

team 1

Endre Birkeland

Managing Director


+47 958 28 155

endre@jupa.no

team 1

Hallvar Møller

Commercial Manager


+47 971 64 938

hallvar@jupa.no

team 1

John Schjelderup

Engineering Manager


+47 482 05 241

john@jupa.no

team 1

Anton Ueland

Project Engineer


+47 479 40 240

anton@jupa.no

team 1

John-Reidar Hov

Project Engineer


+47 988 67 229

john-reidar@jupa.no

Heritage, values and HSEQ management

Jupa means "a great depth in the sea" when spoken in the West-coast area of Sunnmøre, Norway. Despite harsh weather and an unforgiving sea, small communities along the Norwegian coast have accomplished great achievements through hard work and relentless creativity. This is our heritage and we shall strive to work, behave, and build our company culture based on these same values.

In Jupa, we have high focus on reviewing our produced documentation and designs in order to ensure that they are practical, to-the-point, and easy to understand. Our main goal is to ensure that our procedures and products cause zero harm to personnel and the environment, and no damage to equipment. Jupa has developed a quality management system, which helps us to stay on track while doing this, for every project. Feedback from customers and personnel offshore is also highly valued and helps us maintain a continuous improvement.

Contact Us

Call us 24/7 if you require operational support

Randabergveien 300B

N-4073 Randaberg

Norway

post@jupa.no

+47 958 28 155
